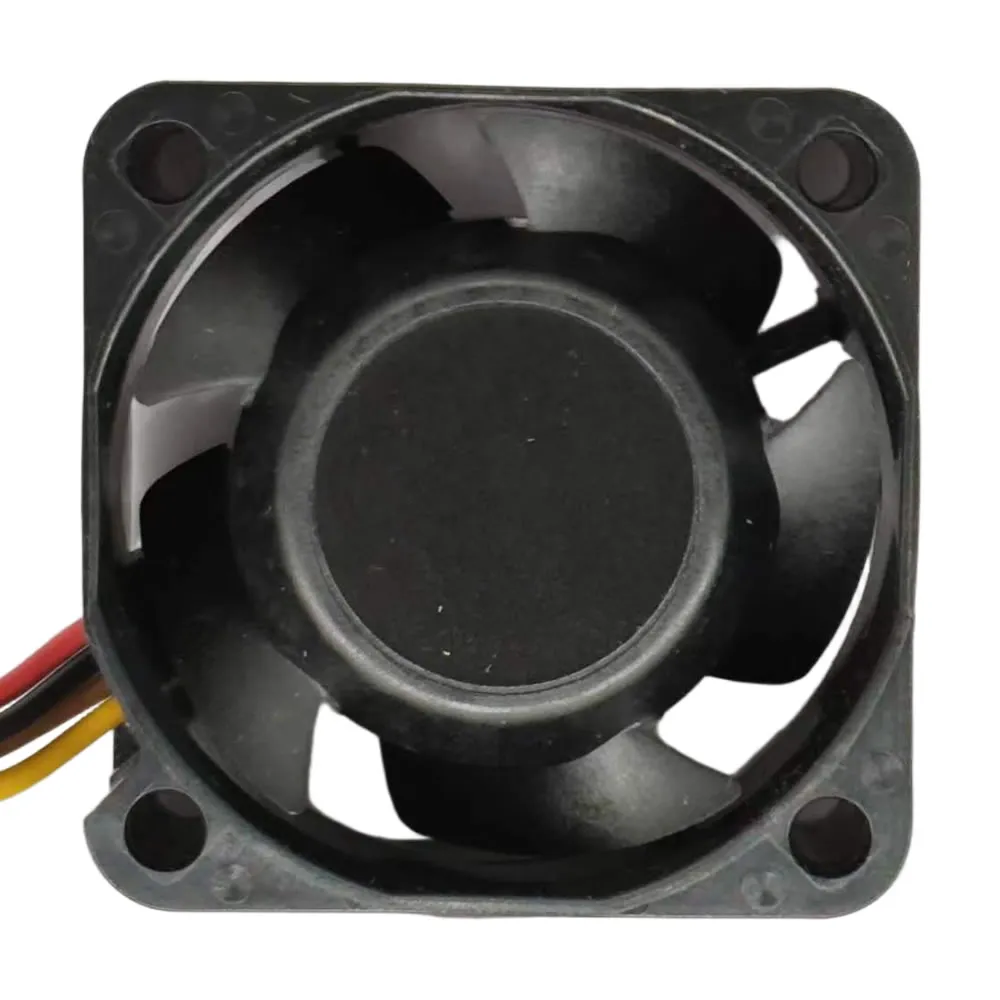

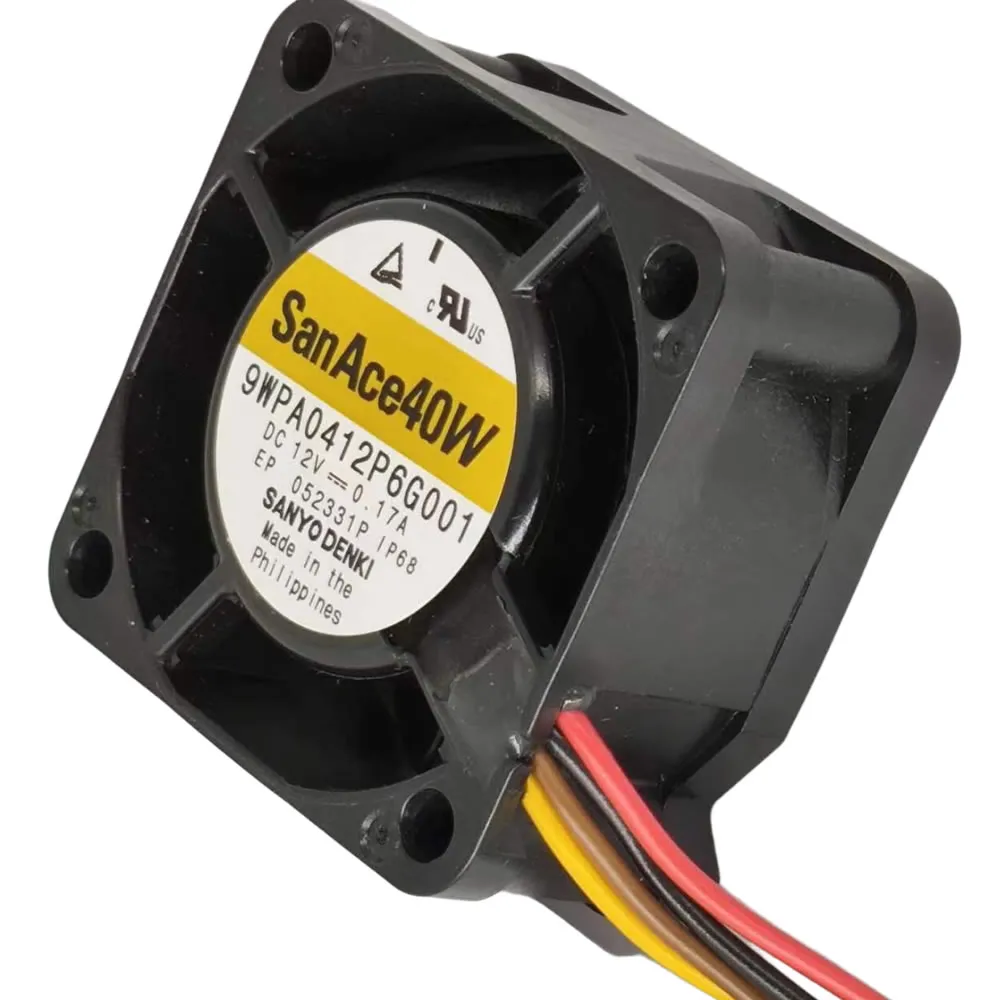

9WPA0412P6G001 Sanyo 12V 0.17A IP68 axial fan

Description

Model:9WPA0412P6G001
Series:San Ace 40W
Manufacturer:Sanyo Denki
Dimensions:40x40x20mm
Rated Voltage:12VDC
Operating Voltage Range: 10.8 VDC to 13.2 VDC
Rated Current:0.17A
Rated Input Power:2.0W
Rated Rotating Speed:13700 min⁻¹ (RPM)
Maximum Air Flow:0.38 m³/min (13.4 CFM)
Maximum Static Pressure:210 Pa(0.84 inchH₂O)
Noise Level: 44dB(A)
Bearing Type: Ball Bearing
Termination: 4 Wire Leads
Frame Material: Plastic
Impeller Material: Plastic
Motor Protection: Locked Rotor Burnout Protection, Reverse Polarity Protection
PWM Control: Yes
Sensor Type: Pulse Sensor (Tachometer)
IP Rating: IP68 (Dust Tight, Waterproof)
Expected Life: 40,000 hours at 60°C, 70,000 hours at 40°C
Operating Temperature Range: -20°C to +70°C
Storage Temperature Range: -30°C to +70°C
Type: Splash Proof DC Axial Flow Fan
