Description
Manufacturer: NMB Minebea by Panaflow
Model: 2410ML-01W-B39 aka 2410ML-01W-B39-XA1

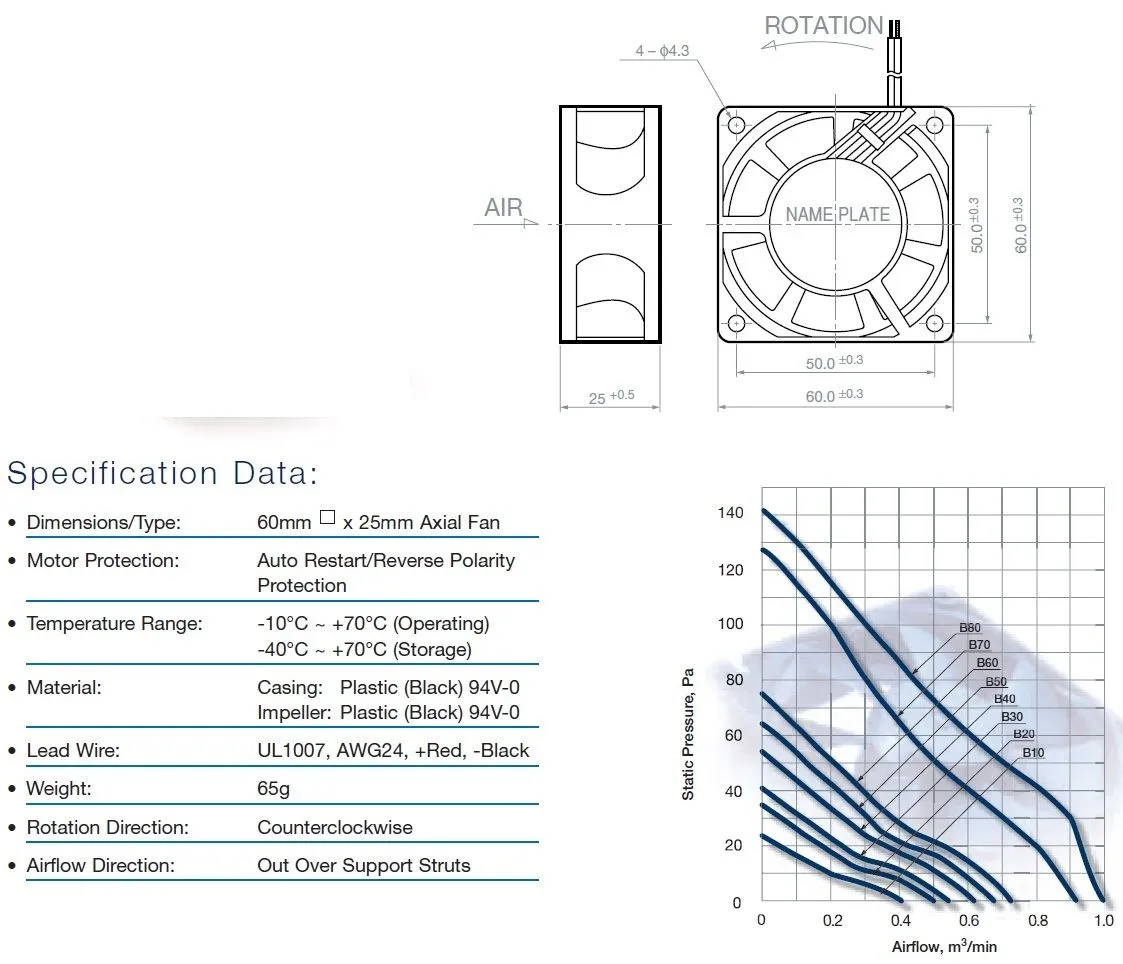

Size: 60mm X 60mm X 25mm (2.36 x 2.36 x 0.98 inches)
Bearing: Ball Bearing (lasts longer and is quieter than Sleeve or Rifle Bearings with similar RPM/CFM)
Life Expectancy: 50,000 hours MTBF (mean time between failures)
Speed: 4550 RPM
Airflow: 21.54 CFM (0.61 m3/min)
Air Pressure: 5.29 mmAq (51.9Pa, 0.8inAq)
Noise Level: 45 dBA
Voltage: 5VDC
Operating range: from 4.5V to 5.5V
Amperage: 0.59 Amps
Wattage: 2.95 Watts

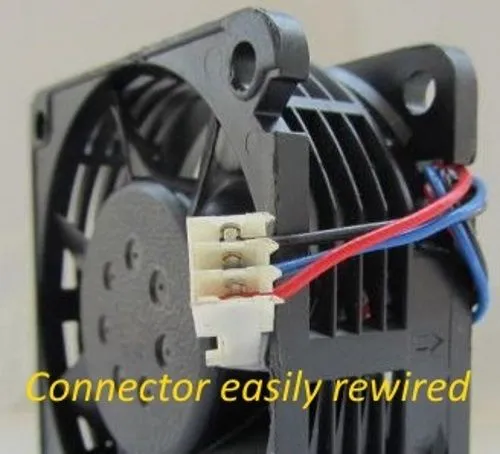

Power Connector: 3pin (Red=+DC, Blue=Sensor, Black=-DC)
Wire Conductors: 3wire
Wire Length: 3inch (7.62cm)
Additional information
| Weight | 1 kg |
|---|---|
| MPN | 2410ML-01W-B39 2410ML-01W-B39-XA1 6025 |
| Quantity | 1 |
| Conductor | 3wire |
| Connector Type | 3pin |
| Air Pressure | 5.29mmH2O |
| UPC | Does not apply |
| Power Connection | 3-Pin |
| Current | 0.16Amps |
| Noise | 45dBA |
| Fan Thickness | 25mm |
| Brand | NMB Minebea |
| Model | 6025 |
| Max. Air Flow Volume | 21.54 CFM |
| Fan Diameter | 60mm |
| Bearing Type | Ball |
| Voltage | 5V |
| Max. Fan Speed | 4550RPM |
| Type | Cooling Fan |
| Voltage Operating Range | 4.5V to 5.5V |
