Description

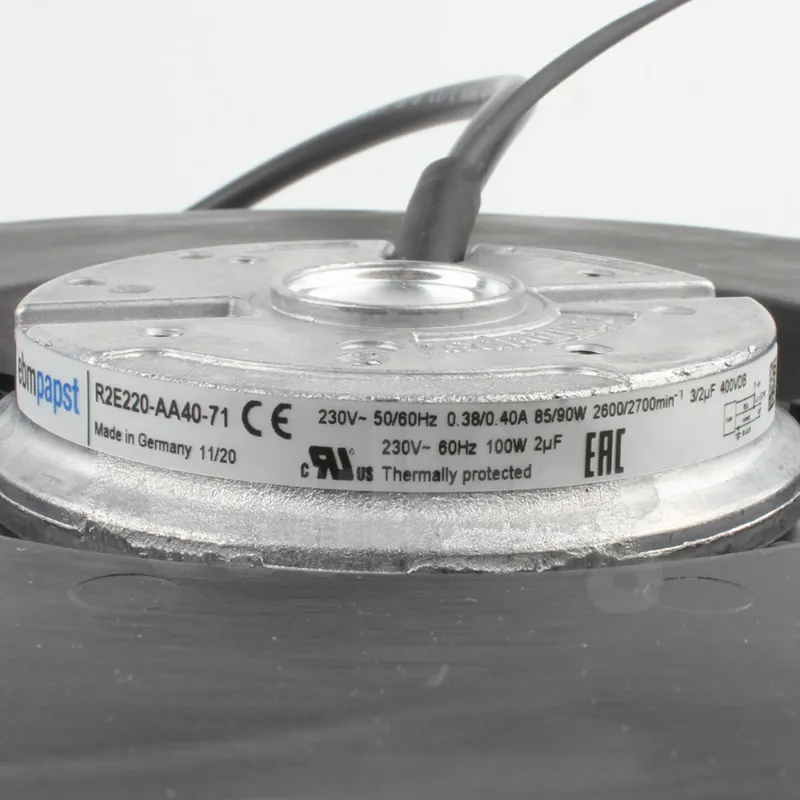

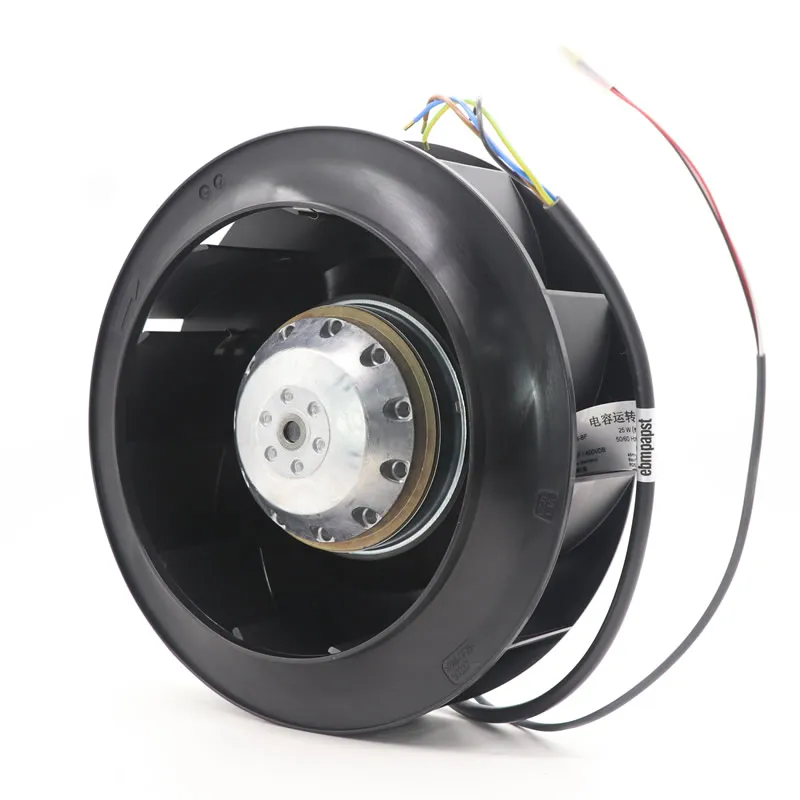

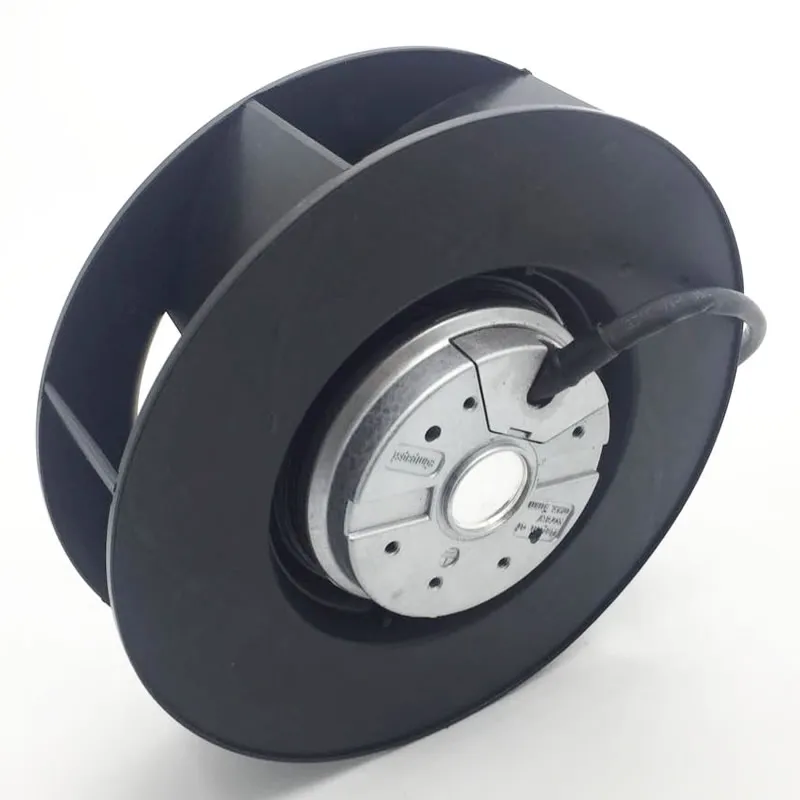

Model: R2E220-AA40-71
Brand:ebmpapst
Supply Voltage: 230VAC
Voltage Type: AC
Fan Frame Size: 252mm
External Depth: 71mm
Flow Rate:15m³/min
AirFlow:530CFM
Flow Rate – Imperial: 530CFM
Air Flow – m3/min: 15m³/min
Noise: 74dBA
Power Rating:100 W
Height:220 mm
Depth:220 mm
Width:71 mm
Bearing Type: Ball Bearing
Power Connection Type: 7 Lead Wires
Power Rating: 90W
Product Range: R2E Series
IP Rating: IP44
Additional information
| Weight | 2 kg |
|---|---|
| Manufacturer Part No: | R2E220-AA40-71 |
| Manufacturer | ebmpapst |
| Motor | M2E068-BF |
| Nominal voltage | 230VAC |
| Frequency | 50~60Hz |
| Valid for approval / standard | CE |
| Speed | 2600~2700min-1 |
| Power input | 85~90W |
| Current draw | 0.38~0.40A |
| Capacitor voltage | 400VDB |
| Max. ambient temperature | 40°C |
| Mass | 1.3 kg |
| Size | 220mm |
| Material of impeller | Plastic PA6, fibreglass-reinforced |
| Direction of rotation | Clockwise, seen on rotor |
| Type of protection | IP44 |
| Motor bearing | Ball bearing |
| Motor protection | Thermal overload protector (TOP) wired internally |
| Product conforming to standard | EN 60335-1; CE |
| Approval | CCC; UL 507; CSA C22.2 Nr.113 |
| Max. permissible ambient motor temp. (transp./ storage) | + 80 °C |
| Min. permissible ambient motor temp. (transp./storage) | – 40 °C |
